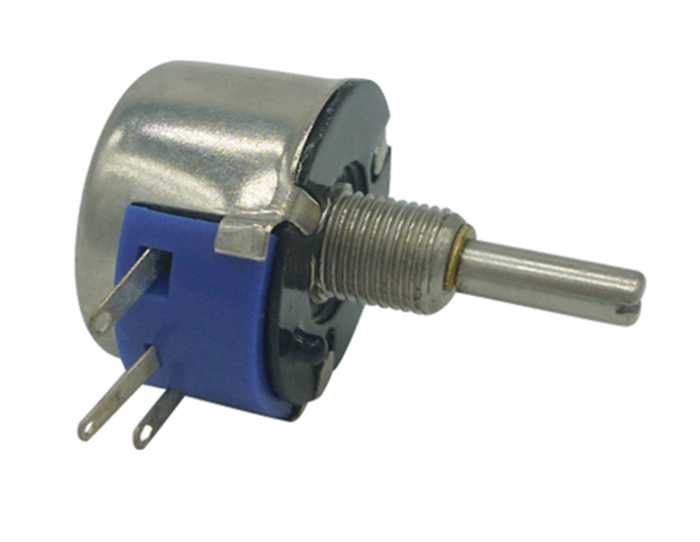

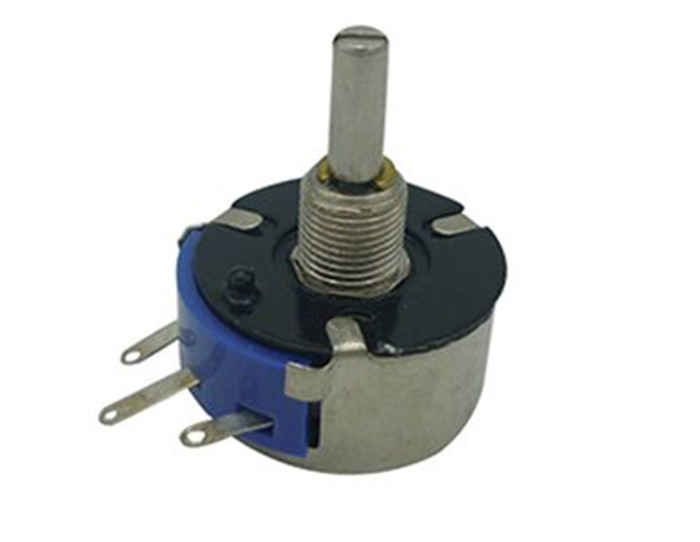

precision wirewound potentiometer single turn WX14
    • precision wirewound potentiometer single turn WX14
    • precision wirewound potentiometer single turn WX14
PRODUCT INFORMATION



   WX14 single-turn wire wound potentiometer

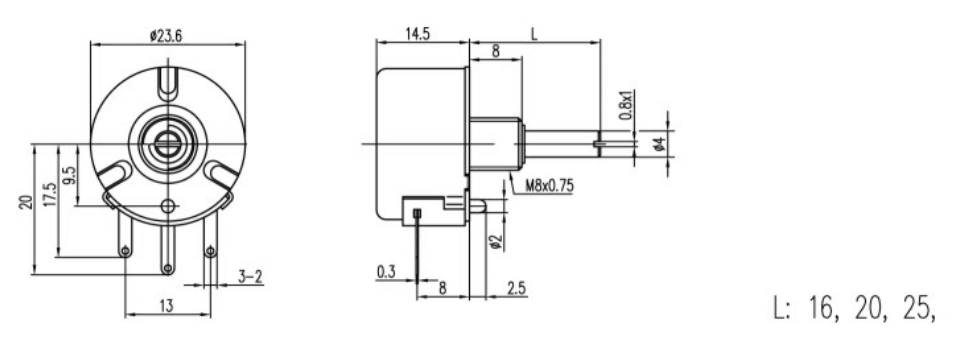

Outline Drawings

Specifications

Resistance range

50ohm-22kohm

Tolerance of resistance

±5% ±10%

Total rotation angle

300±10º

Operating force mN.m

3.5-100

Rated voltage

200V

Power Rating

3W
