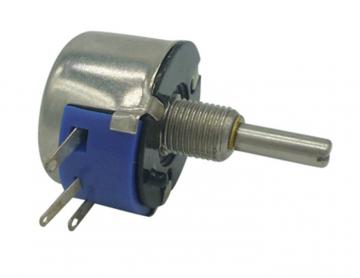

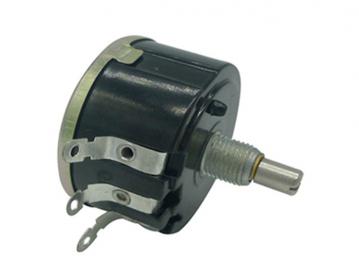

WX118 single-turn wire wound potentiometer

PRODUCT INFORMATION

WX118 single-turn wire wound potentiometer

General

-This specification is applied to potentiometer used for electronic equipment.

-Operating temperature:-25º-90º

Features

-Long life

-Dust proof construction without any opening part

-Better feeling

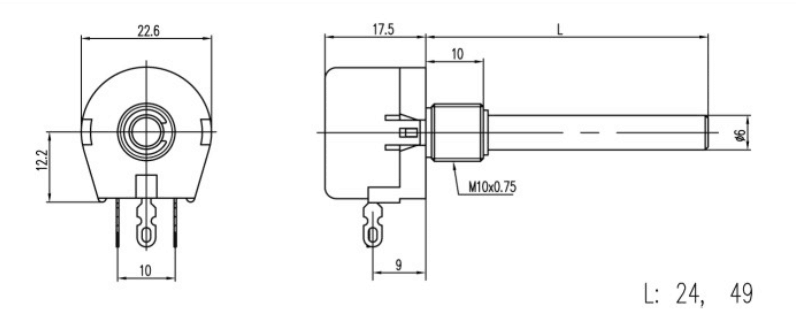

Outline Drawings

CHARACTERISTICS

Model	WX118
Total Resistance	1KΩ
Power Ratings	1W/40℃
Maximum Working Voltage	200V
Maximum Wiper Current	100mA
Operating Temp. Range	-20℃~+55℃
Resistance Tolerance	±10%
Effective Electrical Travel	285°±5°
End Resistance	2Ωmax
Dielectric Strength (Room Conditions)	1000V AC
Insulation Resistance	1000MΩmin.(at 500V DC)
Shaft Torque	3.5~100mN.m
Rotational Life	5000cycles without discontinuity
Temperature Coefficient	±100ppm/℃
