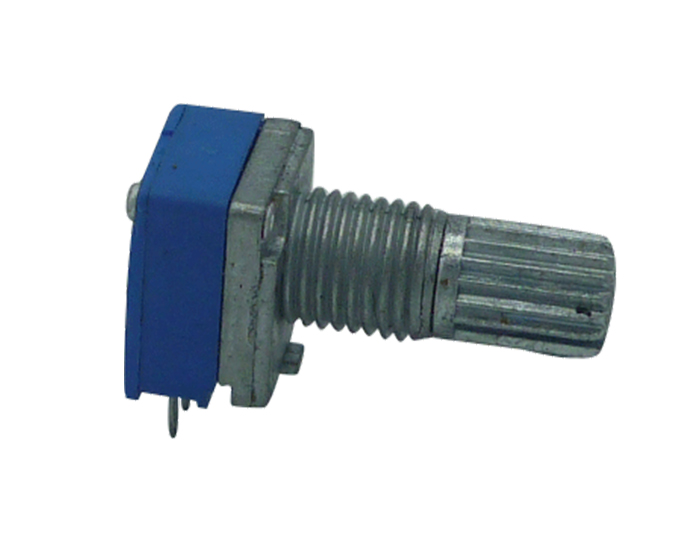

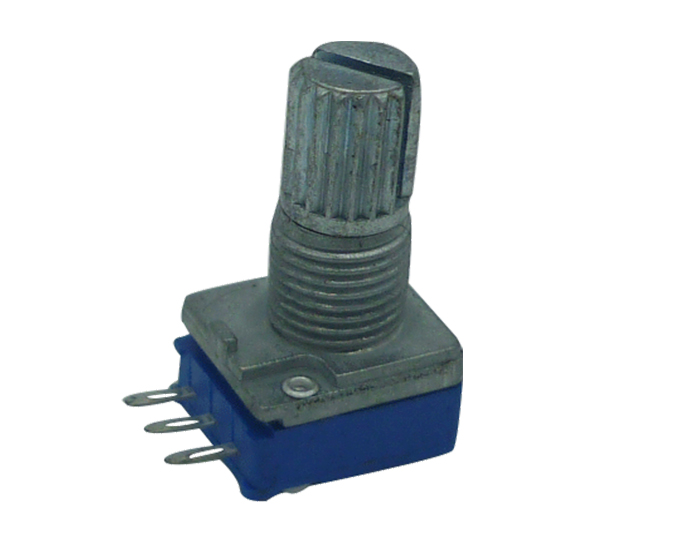

WH9011A-1 mono rotary potentiometer with metal shaft
    • WH9011A-1 mono rotary potentiometer with metal shaft
    • WH9011A-1 mono rotary potentiometer with metal shaft
PRODUCT INFORMATION



WH9011A-1 mono rotary potentiometer with metal shaft

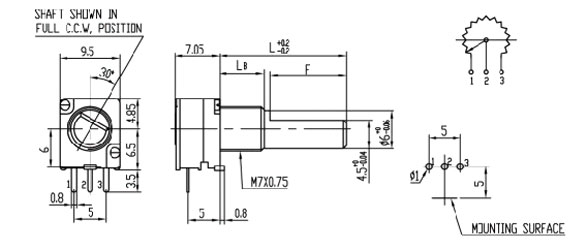

OUTLINE DRAWING



ELECTRICAL CHARACTERISTICS

Item

Item

Specification

1.1

Resistance value and tolerance of resistance

   K±20%

1.2

Load power

0.1 W

1.3

Rotational noise

47mV max

1.4

Insulation Resistance

>100MΩ  At  200V  DC

1.5

Withstanding Voltage

>1Minute   At  250V  AC

1.6

Max rated voltage

50V AC

1.7

Tracking error


1.8

Residual resistance

R1,2<10Ω; R2,3<10Ω

MECHANICAL CHARACTERISTICS

2.1

Dimensions

Refer to the separate product drawing

2.2

Total rotation angle

300±5°

2.3

Effective electrical angle


2.4

Rotational torque

10~50gf.cm

2.5

Shaft Push pull Strength

≥8kgf

2.6

Click slip-out force


2.7

Shaft wobble (mm p-p)

≤0.3mm

2.8

Shaft stop Strength

>5kg.cm

2.9

Shaft wobble (mm p-p)

≤0.3mm

2.10

Rotating life

10,000 cycles

DURABILITY CHARACTERISTICS

3.1

Storage Temperature Range

-30℃~+80℃

3.2

Operation Temperature Range

-20℃~+70℃

3.3

Soldering Heat Characteristic

260°C/2.5±0.5S


Type of shaft

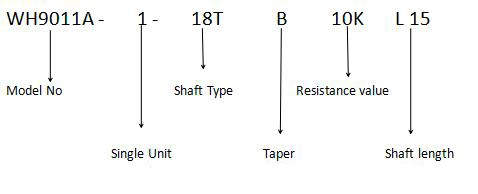

How to order
