WH16S-1 Rotary Potentiometers with insulated shaft

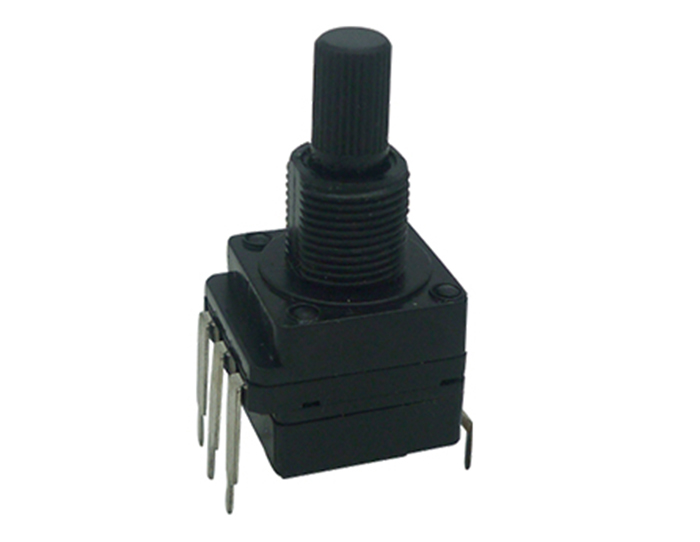

    • WH16S-1 Rotary Potentiometers with insulated shaft

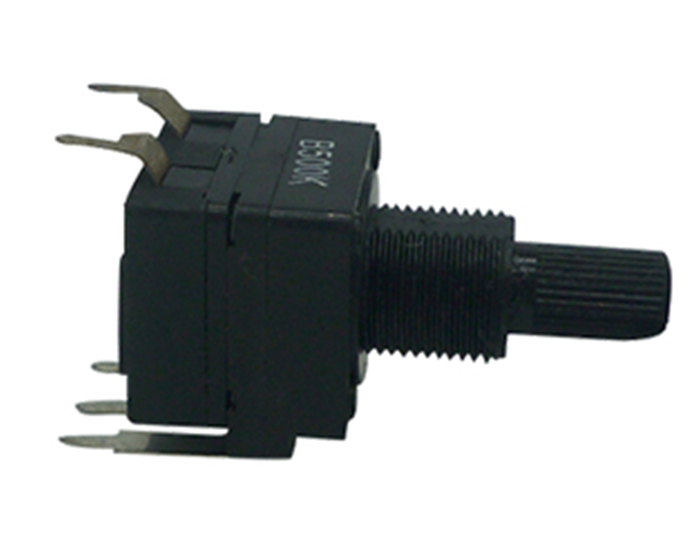

    • WH16S-1 Rotary Potentiometers with insulated shaft
PRODUCT INFORMATION

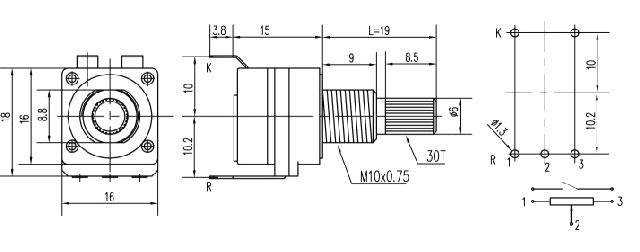

Outline Drawing

Specifications

Model

WH16S

Rotation angle

300º

Operating force

20-200gf.cm

Power Rating

0.125W 0.06W

Withstand voltage

200V 150V

Rotational noise

47mV

Insulation resistance

DC250V 100Mohm min

Shaft stopper strength

3Kgf.cm

Rotation life

10000cycles
