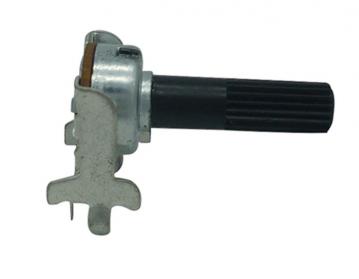

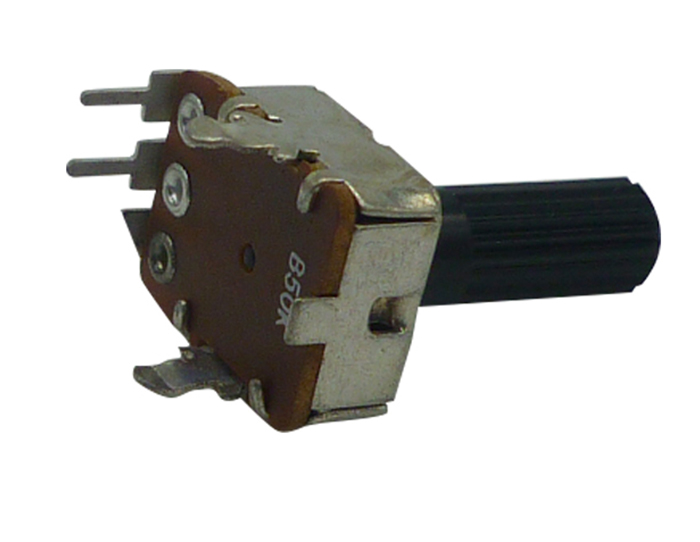

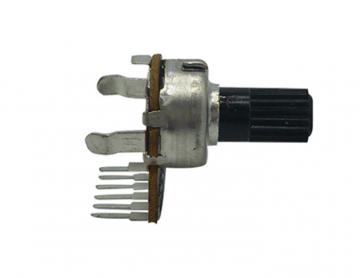

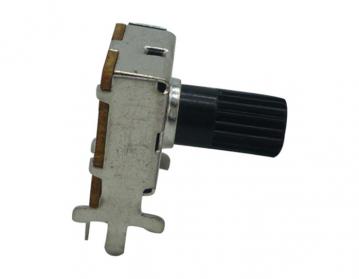

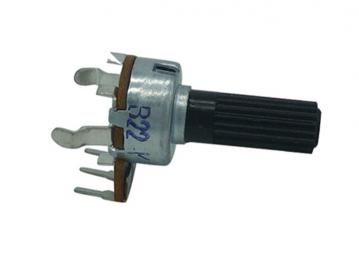

WH123-1 12mm Rotary Potentiometers with insulated shaft
    • WH123-1 12mm Rotary Potentiometers with insulated shaft
    • WH123-1 12mm Rotary Potentiometers with insulated shaft
PRODUCT INFORMATION

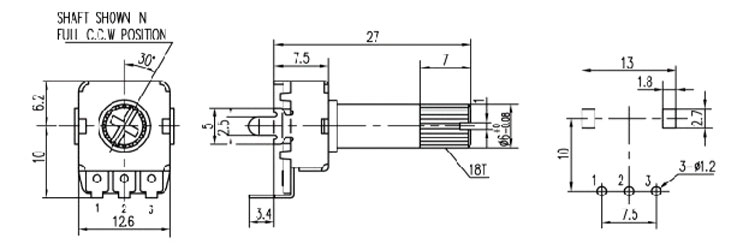

Outline Drawing


ELECTRICAL CHARACTERISTICS

Item

Item

Specification

1.1

Resistance value and tolerance of resistance

    K ±20%

1.2

Load power

0.05 W

1.3

Rotational noise

47mV max

1.4

Insulation Resistance

>100MΩ  At  250V  DC

1.5

Withstanding Voltage

>1Minute   At  350V  AC

1.6

Max rated voltage

50V AC

1.7

Tracking error


1.8

Residual resistance

R1,2<10Ω; R2,3<10Ω

1.9

Switch contact resistance


1.10

Switch power


MECHANICAL CHARACTERISTICS

2.1

Dimensions

Refer to the separate product drawing

2.2

Total rotation angle

300±5°

2.3

Rotational Torque

20~200gf.cm

2.4

Switch working angle


2.5

Switch torque


2.6

Shaft Push Pull Strength

≥3kgf

2.7

Click slip-out force


2.8

Shaft Wobble (mm p-p)

≤0.3mm

2.9

Shaft Stop Strength

>3kg.cm

DURABILITY CHARACTERISTICS

3.1

Rotating life

10,000 cycles

3.2

Storage Temperature Range

-30℃~+80℃

3.3

Operation Temperature Range

-20℃~+70℃

3.4

Soldering Heat Characteristic

260°C/2.5±0.5S

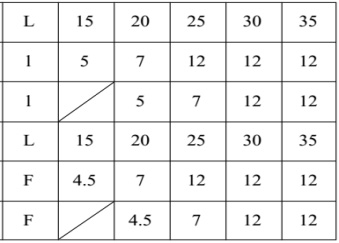

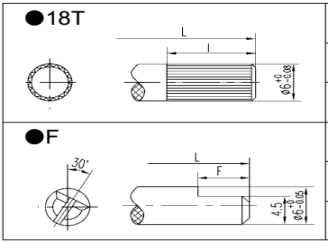

Type of shaft
