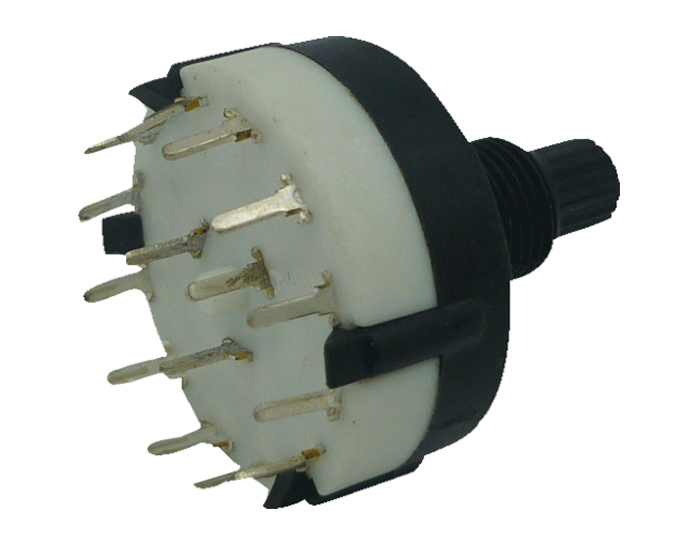

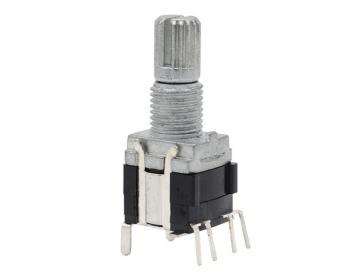

RS23 Rotary Switch
    • RS23 Rotary Switch
    • RS23 Rotary Switch

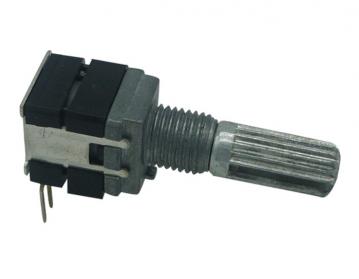

PRODUCT INFORMATION

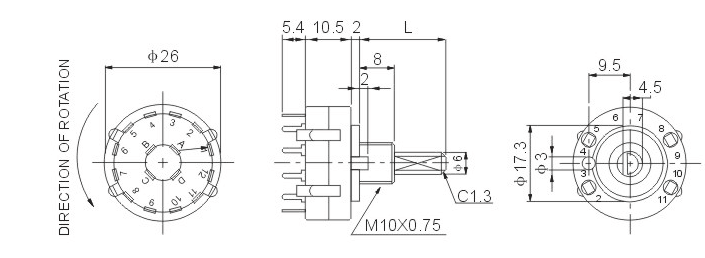

OUTLINE DRAWING

ELECTRICAL CHARACTERISTICS

Item

Content

Specification

1.1

Rating

AC125V;0.3A

1.2

Insulation Resistance

DC500V-100MΩ

1.3

Withstanding Voltage

1 Minute at AC  500V

1.4

Contact Resistance

≤50mΩ

MECHANICAL CHARACTERISTICS

 2.1

Dimensions

Refer to the separate product drawing

2.2

Rotational Torque

3K gf.cm Max

2.3

Changeover Angle

30 °(one-step operating angel)

2.4

Shaft Push Pull Strength

≥ 10kgf.cm

2.5

Shaft Wobble (mm p-p)

≤0.3mm

2.6

Shaft Stop Strength

≥ 3Kgf.cm

DURABILITY CHARACTERISTICS

 3.1

Rotational Life

≥10,000cycles (Contact Resistance:
≤100mΩ)

3.2

Salt mist

8H

3.3

Storage Temperature Range

-30℃~+80℃

3.4

Operation Temperature Range

-20℃~+70℃

3.5

Soldering Heat Characteristic

Auto Soldering260℃±5℃:time: 4±1 sec
Manual Soldering 350℃±5℃;time:3±1 sec
