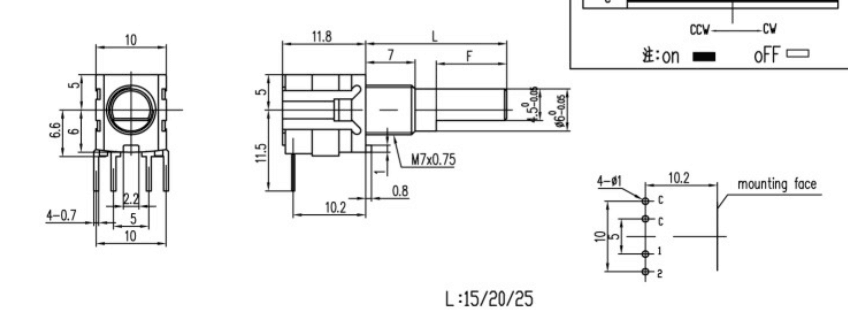

Outline Drawing
ELECTRICAL CHARACTERISTICS
| Item | Content | Specification |
1.1 | Rating | 16V DC, 0.1A |
1.2 | Insulation Resistance | ≥100 MΩ at DC 100 V |
1.3 | Withstanding Voltage | 1 Minute at AC 100V |
1.4 | Contact Resistance | ≤50mΩ |
MECHANICAL CHARACTERISTICS
| 2.1 | Dimensions | Refer to the separate product drawing |
2.2 | Rotational angle | Fourth gear 90°±5° |
2.3 | Rotational torque | 400±200gf．cm |
2.4 | Shaft Push Pull Strength | Push 6kgf / pull 4kgf |
2.5 | Shaft Wobble (mm p-p) | ≤0.5mm |
2.6 | Shaft Stop Strength | ≥ 4Kgf.cm |
DURABILITY CHARACTERISTICS
3.1 | Rotational Life | ≥10,000cycles (Contact Resistance: |
3.2 | Salt mist | 8H |
3.3 | Storage Temperature Range | -30℃~+80℃ |
3.4 | Operation Temperature Range | -20℃~+70℃ |
3.5 | Soldering Heat Characteristic | Auto Soldering260℃±5℃：time: 4±1 sec |

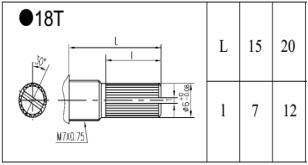

Type of shaft
