WXD3-13
    • WXD3-13
    • WXD3-13
PRODUCT INFORMATION

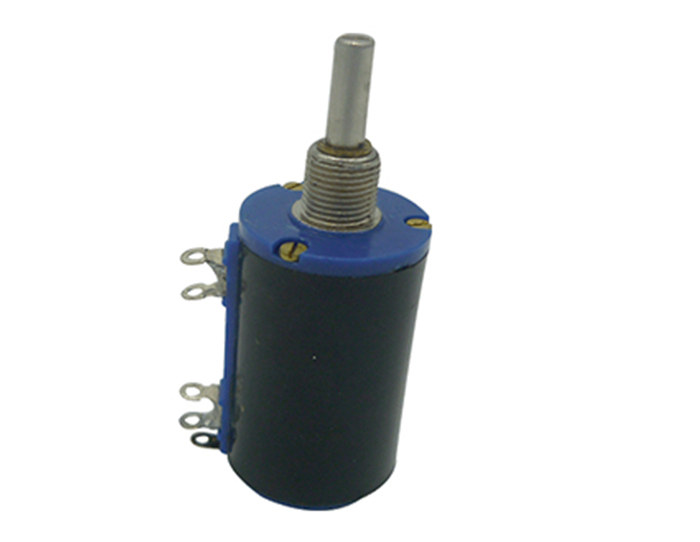

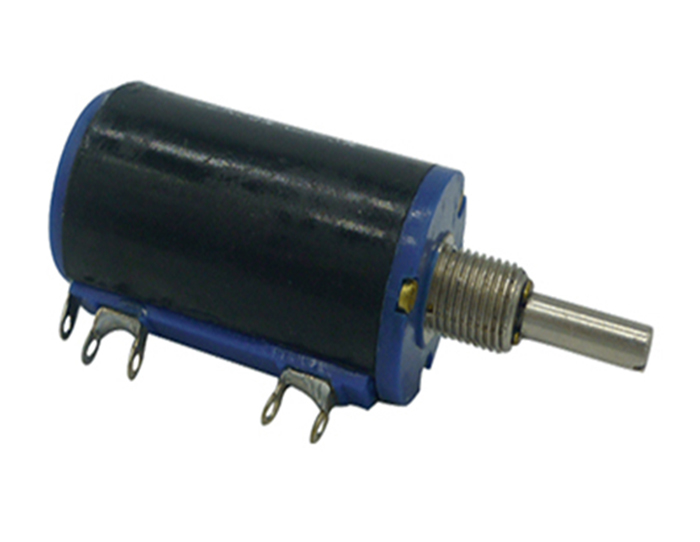

WXD3-13 10 turn wire wound potentiometer

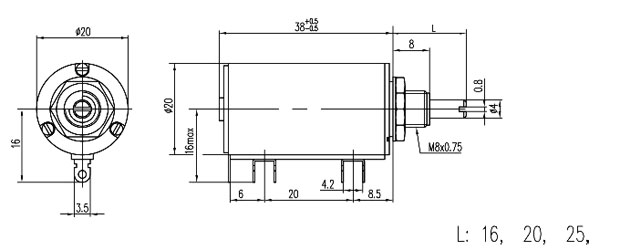

OUTLINE DRAWING


Specifications

Resistance range

100ohm-56kohm

Tolerance of resistance

±5%

Total rotation angle

3600±20º

Operating force mN.m

3.5-100

Rated voltage

160V

Power Rating

2W
